Architecture documentation that stays attached to the model

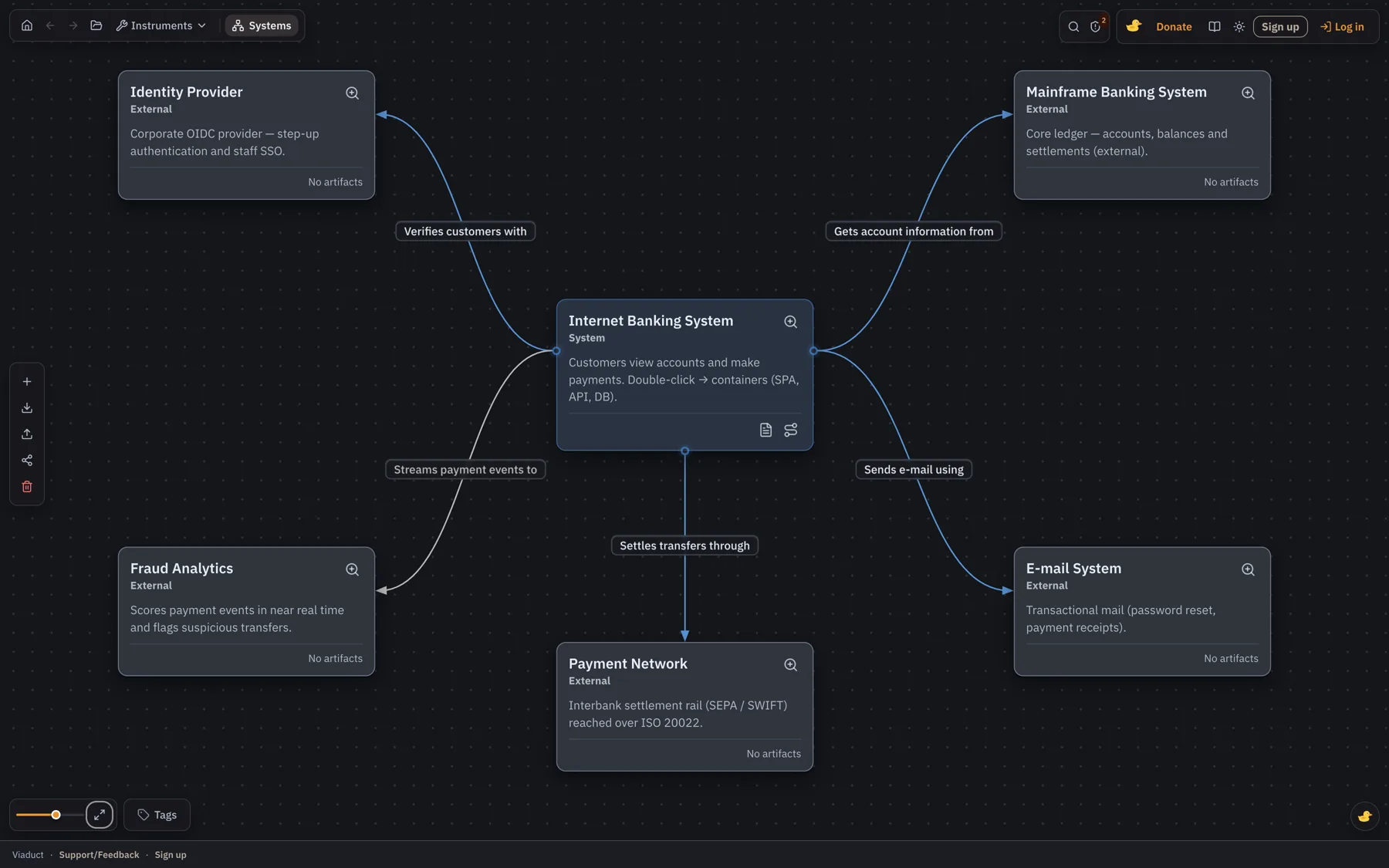

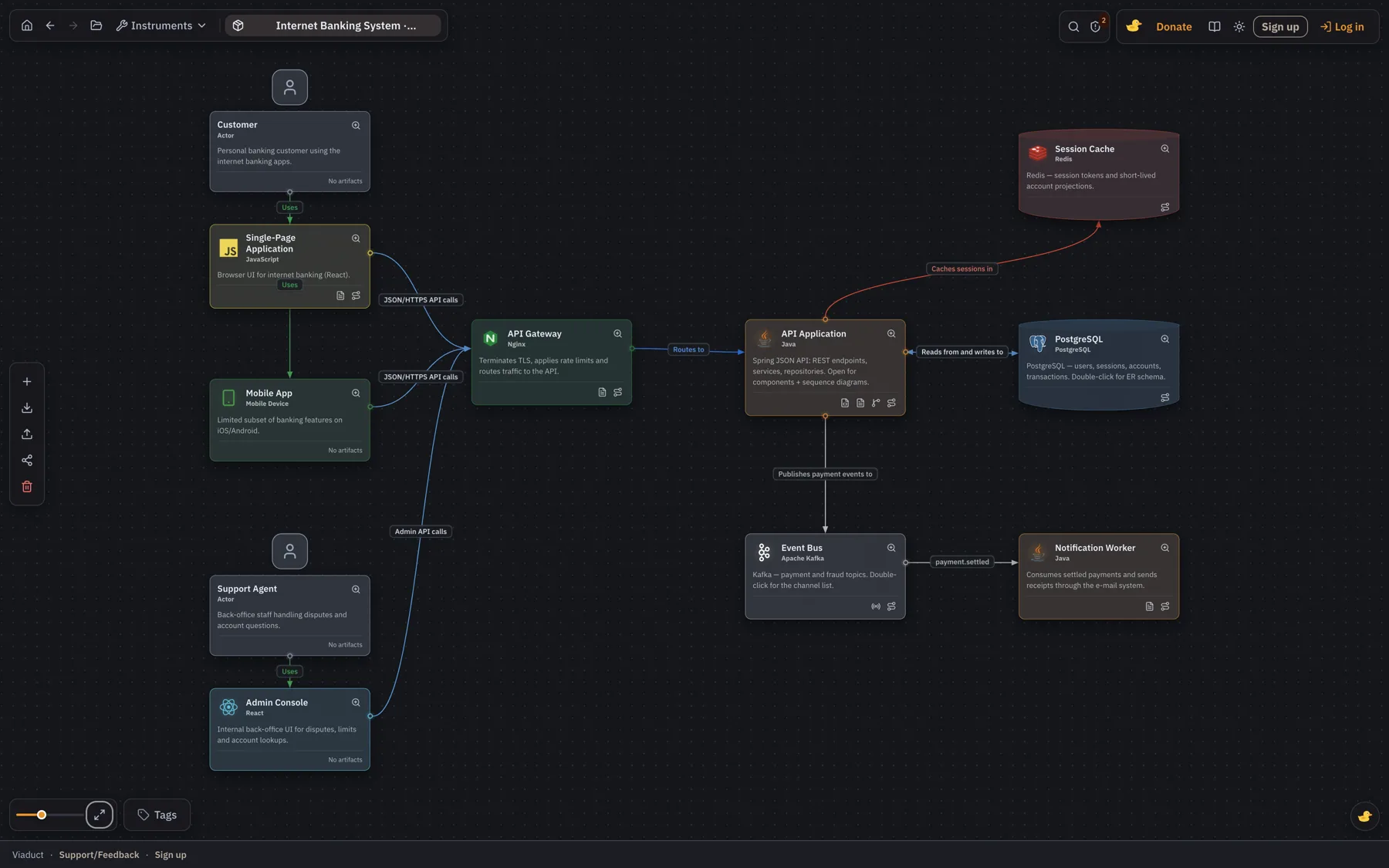

The editor follows the familiar four C4 levels:

1. System Context — the system boundary, users, and external dependencies.
2. Containers — applications, databases, web frontends, and other deployable or executable units.
3. Components — controllers, services, adapters, endpoints, and internal building blocks.
4. Code — classes, interfaces, functions, or other implementation-level objects where that detail is useful.

A small but important clarification: a container in C4 does not mean a Docker container. It is a high-level runtime or data-store boundary such as an API application, a PostgreSQL database, or a single-page web application.

The point of these layers is not to document everything to the same depth. In most systems, Context, Container, and selected Component diagrams are enough. I only use the Code level for the parts that are genuinely hard to understand, risky to change, or important for onboarding.

A node on a diagram is rarely self-explanatory.

For example, an Internet Banking System node might need an owner, a business boundary, a list of external integrations, data constraints, or links to operational documentation. An API application needs different information: responsibilities, deployment details, contracts, and important scenarios.

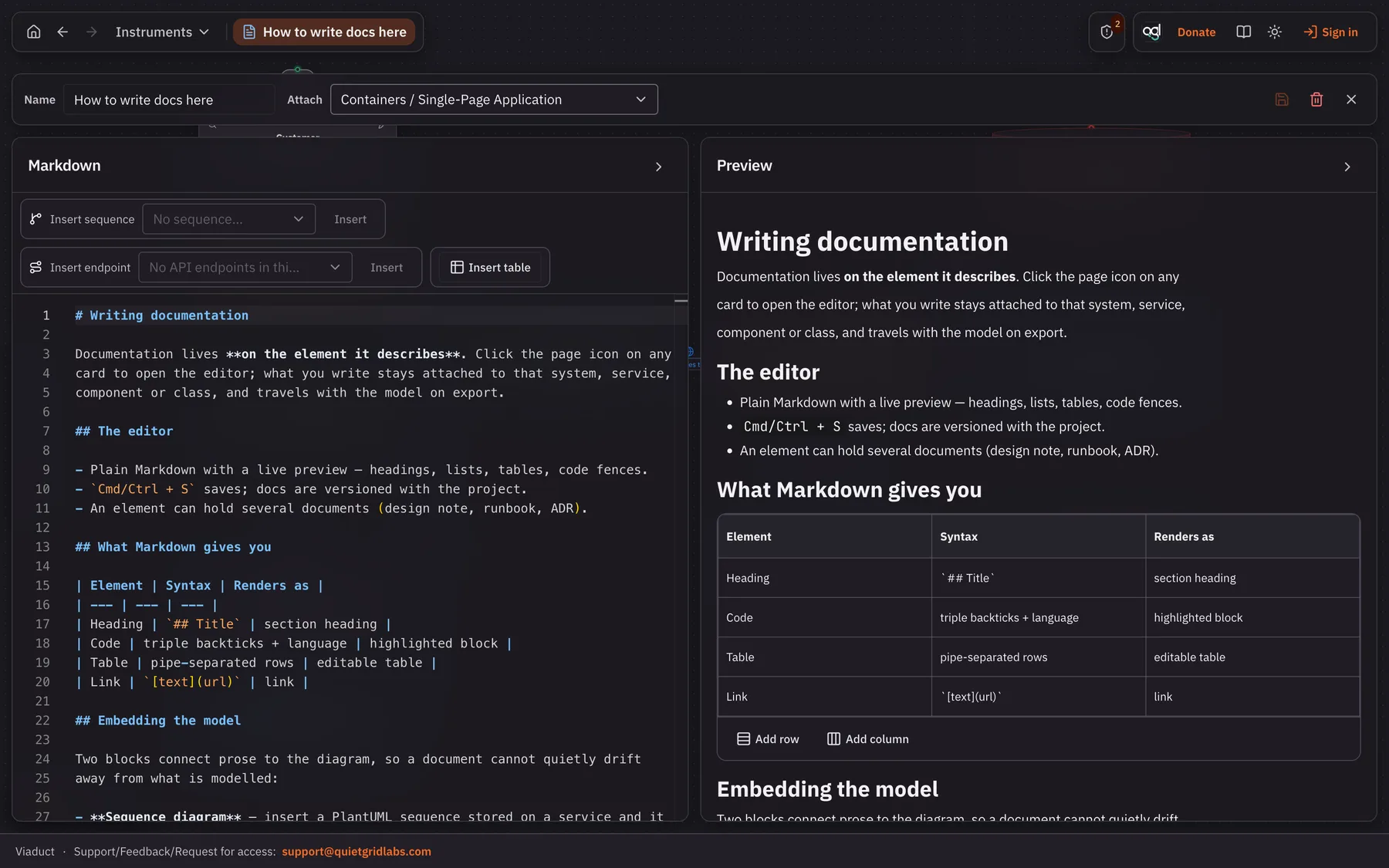

In the editor, Markdown documentation is attached directly to an element. The card indicates when documentation exists, and opening the card opens the relevant document rather than sending the reader on a search through a knowledge base.

This is deliberately unglamorous. Markdown is familiar, portable, and easy to keep under review. The useful part is not the editor itself; it is the fact that the documentation has an explicit architectural home.

Sequence diagrams explain behavior, while a C4 diagram explains structure. Teams usually need both.

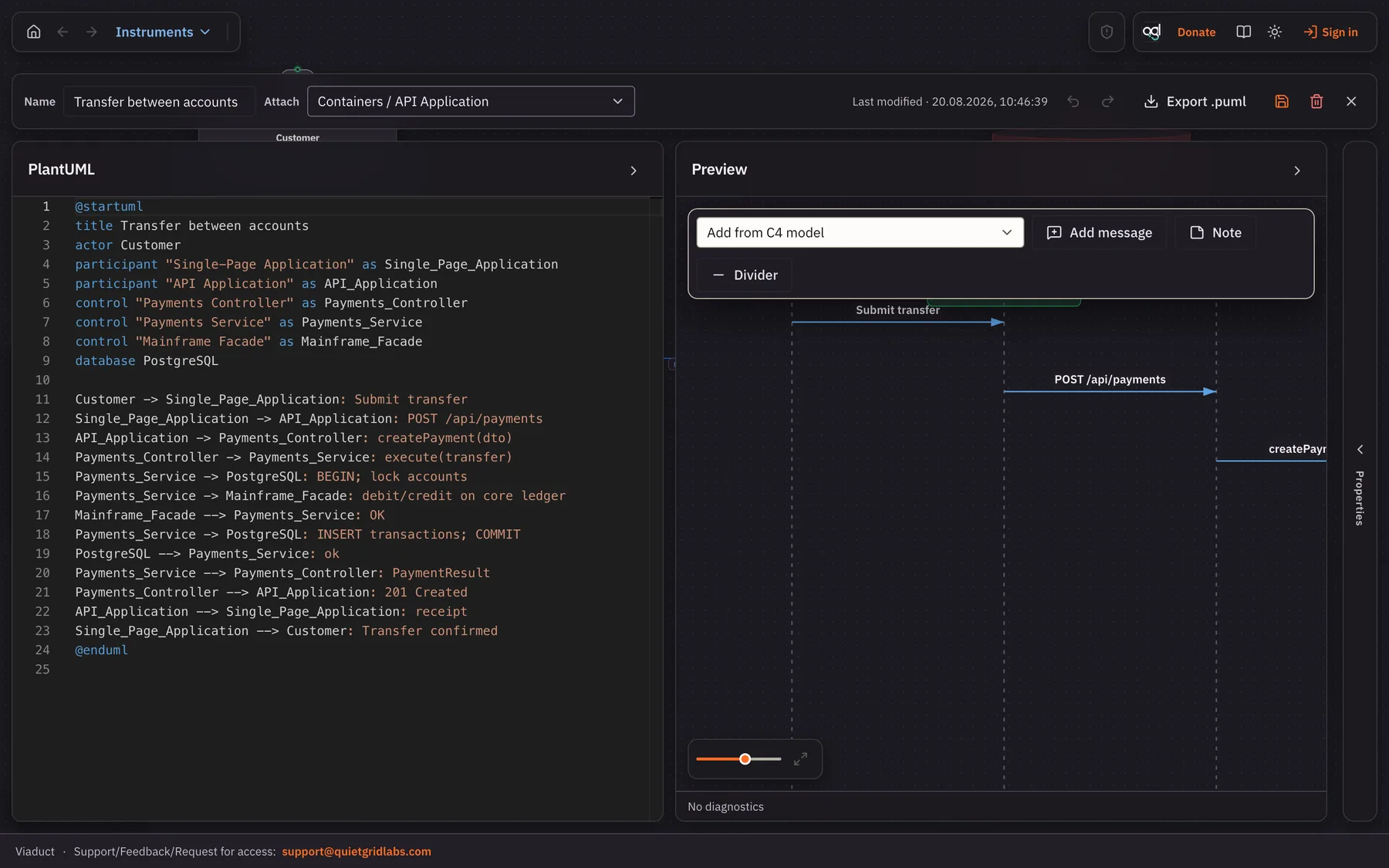

For an API application, I can attach PlantUML sequence diagrams that describe the flows handled by that application. Participants are selected from the current C4 layer, which prevents a sequence diagram from mixing unrelated levels of abstraction.

The editor supports group and alt folding for long flows. The same sequence diagram can also be embedded in the Markdown documentation of the element it belongs to.

That gives a reader a more useful path than a wiki link: start with the API application, read what it does, and inspect a specific interaction without losing context.

The feature I find most useful is relationship tracing.

Imagine a container-level relationship between a single-page application and an API application. The arrow tells us that the frontend calls the API, but it does not answer the question an engineer will ask next:

Which API endpoints, controllers, or services participate in this relationship?

A relationship can be associated with relevant components in the target container. From the relationship menu, the user can then open the component view with those components highlighted.

For a review, this makes it possible to move through a path such as:

SPA → API Application → Auth Service → endpoint / internal component

without manually searching multiple diagrams. It is not full runtime tracing, and it does not replace observability. It is architecture navigation: a way to record how the team believes a dependency is implemented.

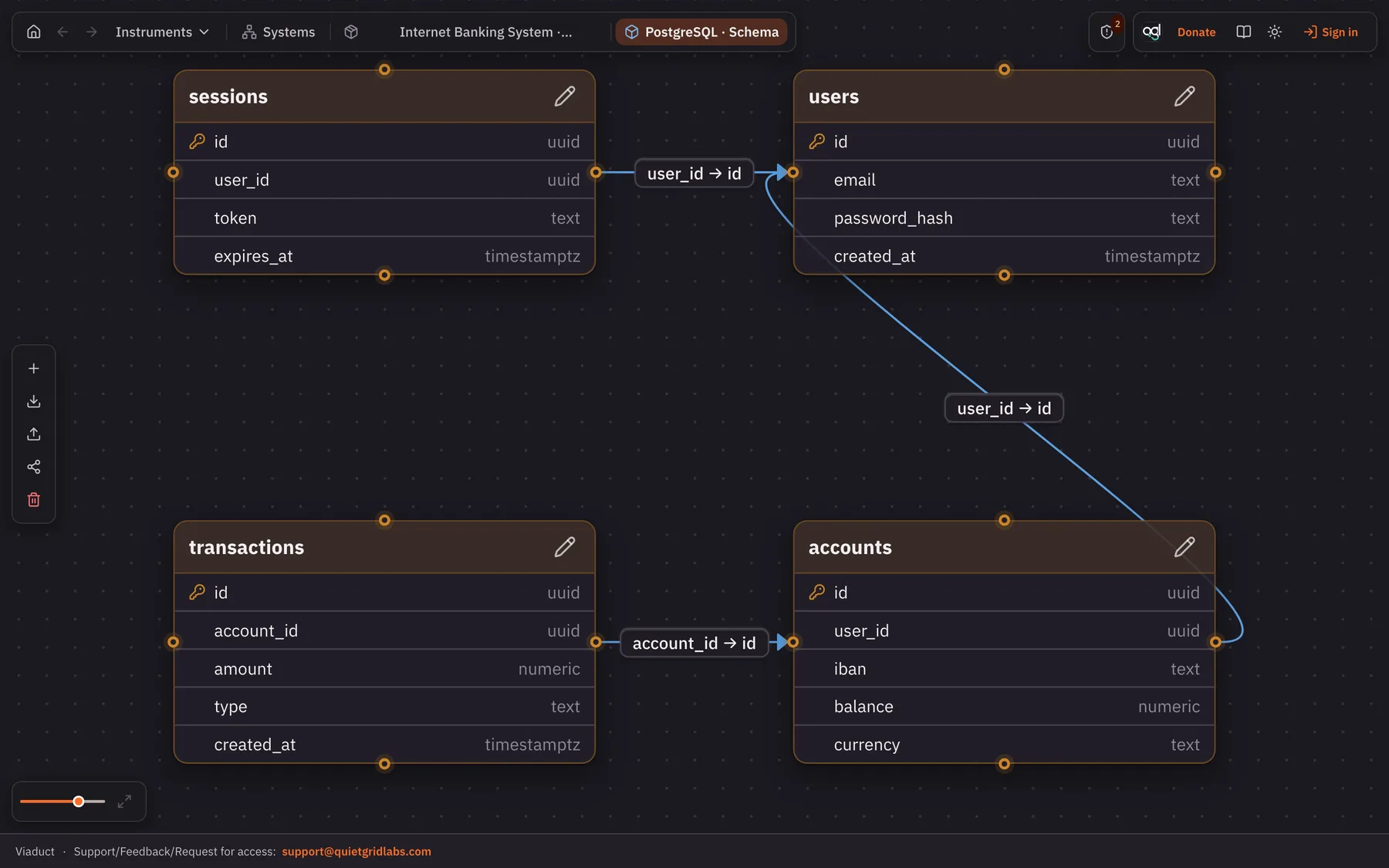

A database container can open an ER editor. Tables can have their own documentation, which is useful for recording ownership, retention requirements, migration rules, or the meaning of an overloaded field.

At the Component level, the tool also includes an API Endpoint element. It is intentionally different from a normal component: it does not have a Code child level, but it can hold request, response, and header definitions.

The goal is not to compete with a complete OpenAPI workflow. It is to give an important architectural entry point a place in the model, particularly when reviewing a cross-container integration.

A C4 diagram shows what exists. It does not show what happens when a customer presses a button. A Magic flow is that missing piece: an ordered walk through the model, built from the elements and connections that are already there.

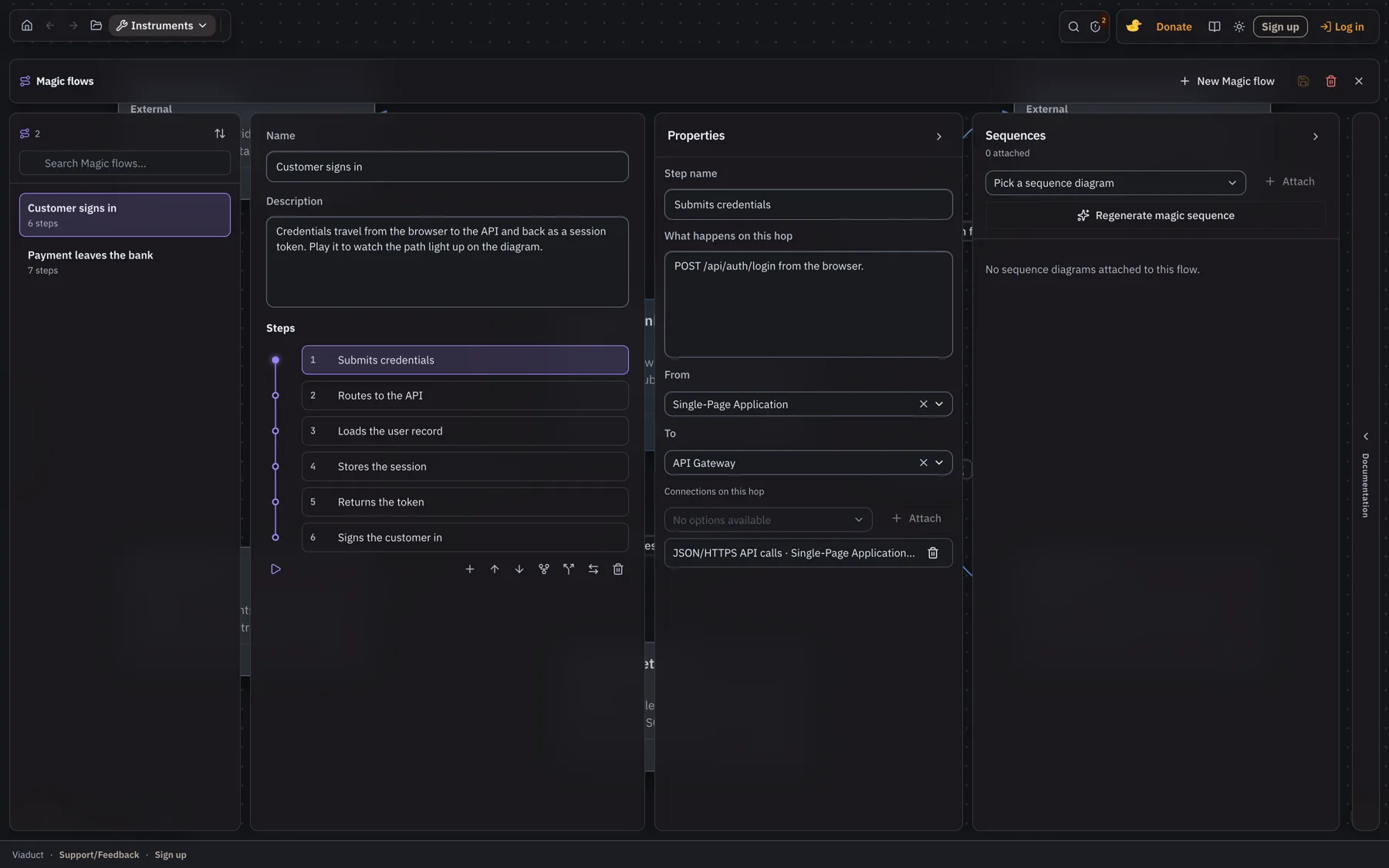

What a flow is made of

• Steps — each names a hop: where it starts, where it ends, and which connection it uses.
• Stages — steps marked as parallel play together, so a fan-out reads as a fan-out instead of a queue.
• Attachments — the docs, sequence diagrams and API endpoints that explain a particular hop.

Playing a flow

Press play and the flow runs on the diagram itself: everything dims except the current hop, the camera follows the request, and arrow keys step back and forth. It is the fastest way to answer “what does this request actually touch?” — during a review, an incident, or someone’s first week.

From a flow to a sequence diagram

A flow can generate a PlantUML sequence diagram from its own steps, so the interaction exists in both forms without being maintained twice. Regenerating overwrites the generated diagram and leaves your hand-written ones alone.

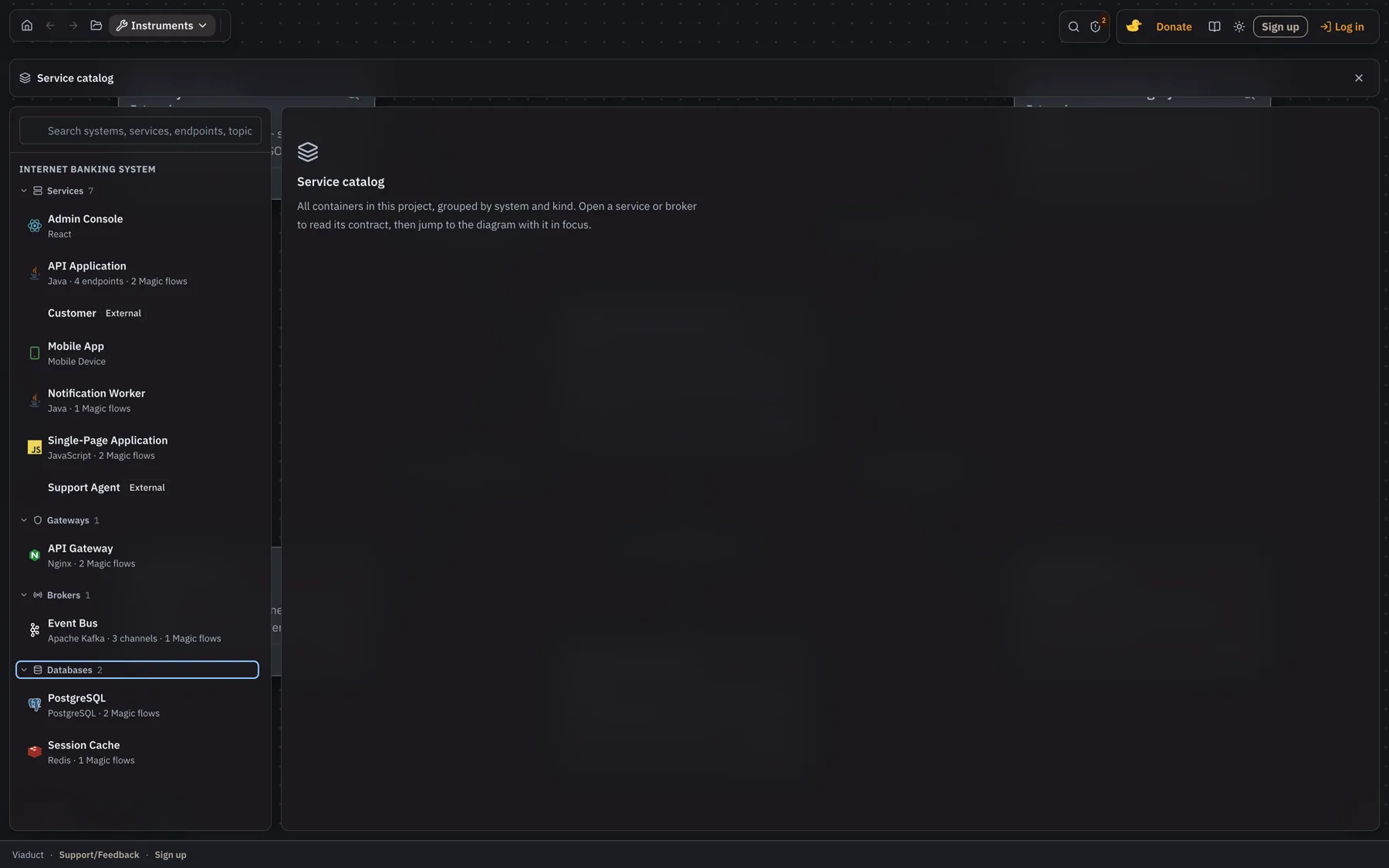

Open flows from the Instruments menu, or from the flow badge on any card that takes part in one.

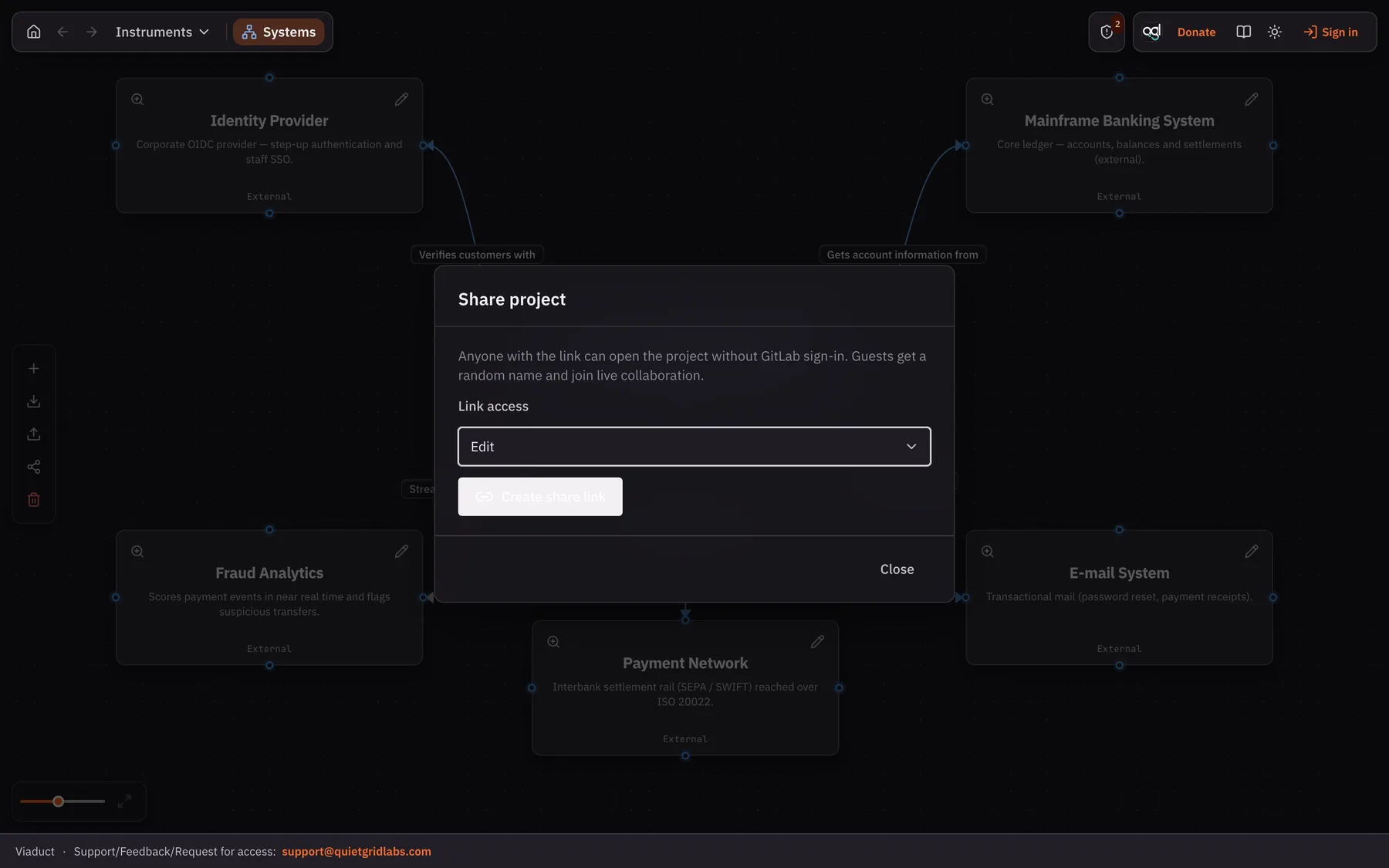

The editor can be used locally in a browser without signing in. Authenticated users can save projects in the cloud and share them with groups. When multiple people work on a project, the canvas shows active users and lets you jump to the area where a collaborator is currently working.

Projects can be exported as JSON. An individual element can be exported as a ZIP archive containing its child elements, relationships, documentation, and PlantUML artifacts.

There is also an MCP server for authenticated users, intended to provide architecture context to tools such as Cursor or Claude Code. I see this as context for discussion and implementation assistance, not as a substitute for engineering judgement. Sensitive data and secrets should never be included in exported or LLM-provided context. Setup details are in MCP for Cursor below.

I want to be explicit about the limits.

• It does not automatically prove that the architecture model matches production.
• It does not replace ADRs, OpenAPI/AsyncAPI, source code, or observability.
• It does not mean every class deserves a C4 Code-level diagram.
• It does not eliminate the human work of keeping documentation current.

What it tries to do is give that human work a better structure: one place to navigate from a system boundary to a specific interaction, component, document, or data model.

Viaduct ships an MCP server so Cursor, Claude Code, Claude Desktop — any MCP client — can pull live architecture context into another codebase: systems and services, API endpoints (method, path, headers, request, response), markdown documentation, and PlantUML sequence diagrams.

The server is hosted at https://mcp.quietgridlabs.com/mcp. Nothing to clone, nothing to install — point your client at the URL and send your token with it. Each request carries its own token, so the server never holds anyone’s credentials.

What you need

• Signed-in access to Viaduct (organization account).
• An MCP client: Cursor, Claude Code, Claude Desktop, or any other.

1. Create a personal API token

Sign in, then open the gear next to your username in the top-right toolbar → Account settings → Create token. The dialog also copies a ready-made mcp.json entry with the token already in it.

• The token is shown once. The server keeps only a hash, so a lost token is reissued, never recovered.
• One token per client. Creating another leaves the existing ones working, so adding a second editor never signs the first one out.
• Config next to a token downloads the file its client expects — Cursor, Claude Code or Claude Desktop, each in the right shape. A token you just created comes out with the value already in it; an older one leaves a placeholder to paste over, since the value itself was never stored.
• Revoke next to a token cuts off that client alone, without touching the others or your browser session.
• Tokens do not expire and are independent of your browser session, which ends after four hours of inactivity. The list shows when each was last used, so a client that was never wired up correctly is easy to spot.

The same thing over HTTP, if you would rather script it. The cookie value comes from DevTools → Application / Storage → Cookies → c4_uid; copy it and run the command in one go, since it is only valid for four hours.

curl -sS -X POST 'https://c4.quietgridlabs.com/api/auth/api-token' \
  -H 'Cookie: c4_uid=PASTE_COOKIE_VALUE' \
  -H 'Content-Type: application/json' \
  -d '{"name":"Claude Code"}'

Example response:

{
  "id": "5f0c…",
  "token": "c4pat_…",
  "name": "Claude Code",
  "createdAt": "2026-…",
  "expiresAt": null,
  "hint": "Store this token in your MCP client config…"
}

To list what the account has — names, creation and last use, never the tokens themselves:

curl -sS 'https://c4.quietgridlabs.com/api/auth/api-token' \
  -H 'Cookie: c4_uid=PASTE_COOKIE_VALUE'

To revoke one by id, or every token on the account:

curl -sS -X DELETE 'https://c4.quietgridlabs.com/api/auth/api-token/TOKEN_ID' \
  -H 'Cookie: c4_uid=PASTE_COOKIE_VALUE'

curl -sS -X DELETE 'https://c4.quietgridlabs.com/api/auth/api-token' \
  -H 'Cookie: c4_uid=PASTE_COOKIE_VALUE'

2a. Configure Cursor

Add a server entry to ~/.cursor/mcp.json (global) or .cursor/mcp.json in a project:

{
  "mcpServers": {
    "viaduct": {
      "url": "https://mcp.quietgridlabs.com/mcp",
      "headers": {
        "Authorization": "Bearer c4pat_PASTE_TOKEN_HERE"
      }
    }
  }
}

Reload MCP in Cursor (Customize / MCP settings, or restart Cursor). Confirm the server shows as connected.

2b. Configure Claude Code

Claude Code reads MCP servers from a .mcp.json file at the root of the project you are working in — commit it and everyone on the repository gets the same architecture context:

{
  "mcpServers": {
    "viaduct": {
      "type": "http",
      "url": "https://mcp.quietgridlabs.com/mcp",
      "headers": {
        "Authorization": "Bearer c4pat_PASTE_TOKEN_HERE"
      }
    }
  }
}

If you do commit it, keep your own token out of the file — it is a personal credential, and a shared one lets everybody act as you.

The same thing from the terminal, without editing files by hand:

claude mcp add --transport http viaduct https://mcp.quietgridlabs.com/mcp \
  --header "Authorization: Bearer c4pat_PASTE_TOKEN_HERE"

Then run /mcp inside Claude Code to check the server is connected and to see the tools it exposes.

2c. Configure Claude Desktop

Claude Desktop keeps its servers in a config file — Settings → Developer → Edit config opens it, or edit it directly:

• macOS: ~/Library/Application Support/Claude/claude_desktop_config.json
• Windows: %APPDATA%\Claude\claude_desktop_config.json

Recent versions add a remote server under Settings → Connectors → Add custom connector, which only asks for the URL. If your build has no Connectors screen, use the config file with a local bridge instead — Claude Desktop’s config file understands commands, not URLs:

{
  "mcpServers": {
    "viaduct": {
      "command": "npx",
      "args": [
        "-y", "mcp-remote", "https://mcp.quietgridlabs.com/mcp",
        "--header", "Authorization: Bearer c4pat_PASTE_TOKEN_HERE"
      ]
    }
  }
}

Restart the app after saving.

3. Quick smoke test

• Ask the agent to run c4_whoami — you should see your username.
• Then c4_project_access and c4_project_context for a project you own or can edit.
• Not connecting? Check the server itself first — this needs no client and no token: curl https://mcp.quietgridlabs.com/healthz.

Available tools

• c4_whoami, c4_list_projects, c4_project_access — auth and edit rights (`canEdit`)
• c4_project_context, c4_get_element, c4_search — read model / docs / sequences
• c4_create_element, c4_update_element, c4_delete_element — write architecture (requires edit)
• c4_upsert_connection, c4_upsert_doc, c4_upsert_sequence — edges, markdown, PlantUML (requires edit)
• c4_list_change_sets, c4_get_implementation_bundle, c4_report_progress — implement a change set and report what is finished

How it behaves day to day

• Write tools refuse projects where your share is view-only.
• Your token travels with each request and is never stored on the server. Revoking it in Account settings cuts off every client at once.
• Useful prompt: “Check c4_project_access, then use c4_create_element / c4_upsert_doc for project <id>.”
• Treat the token like a password — do not commit it to git.

An agent that reads the live model is aiming at a moving target: someone renames a container while it works, and half its assumptions quietly expire. A change set is a piece of work written against a pinned version — one that cannot move while the work is being done.

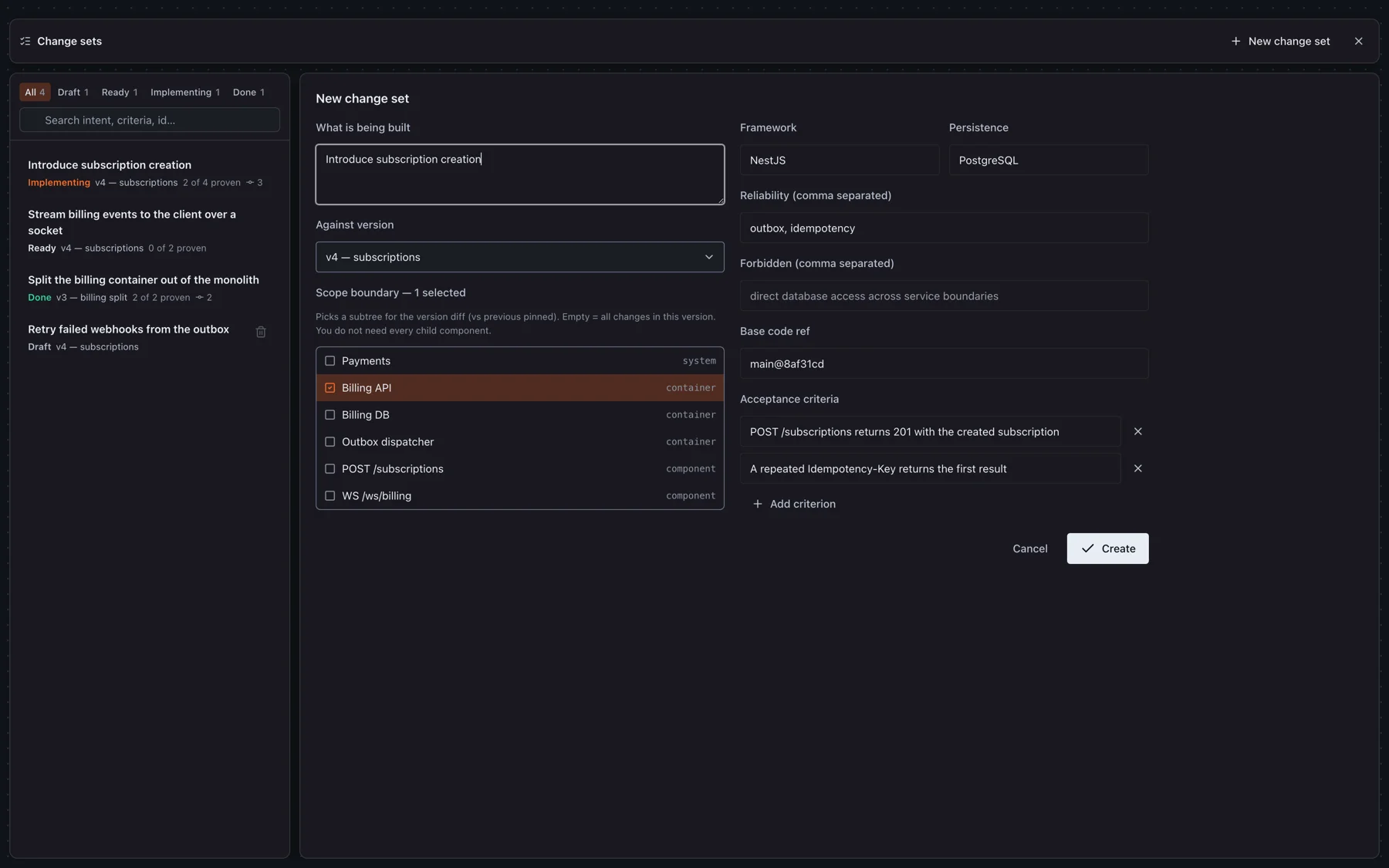

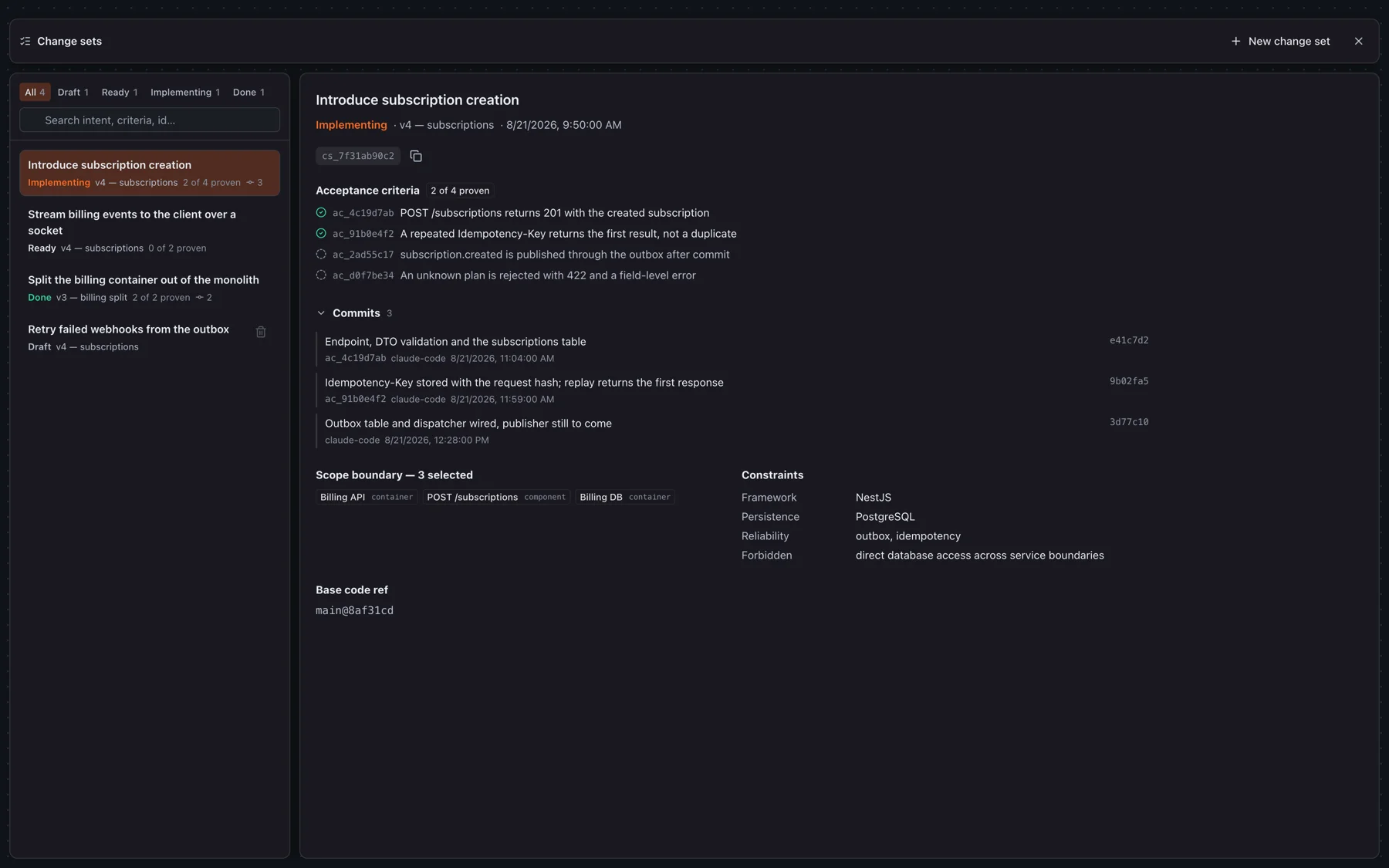

What a change set holds

• Intent — one sentence: what is being built.
• Version — the pinned revision the work stands on. Everything the agent reads comes from it.
• Scope — the elements this work may touch. The picker offers what actually changed in that version compared to the previous pinned one, plus their parents, so a system can cover its children without listing each of them.
• Constraints — framework, persistence, reliability patterns, and what is forbidden. Decisions already made, so the agent does not re-make them.
• Acceptance criteria — each gets an ac_… id that a test name cites. This is what makes “done” a fact rather than a claim.
• Base code ref — the commit the implementation starts from, when you know it.

1. Pin a version, then write the change set

Cut a version from the rail at the bottom-left of the canvas — a change set can only stand on a pinned one, because an automatic snapshot may be evicted and take the work with it. A version identical to the previous one is refused: there is nothing in it to implement.

Then open Instruments → Change sets (or the same entry from the version rail) and press New change set. The catalog lists everything the project has, filtered by status.

2. Hand it over

Open the change set and press Copy agent handoff. You get a prompt with both ids already in it — paste it into Cursor, Claude Code, or anything else wired to the MCP server. It tells the agent to:

• mark the work started, then fetch c4_get_implementation_bundle — a scoped diff of that revision against the previous pinned version, with the contracts, neighbours, flows and documentation of the elements in scope, and nothing else from the graph;
• treat the bundle as the specification — if something in it is wrong or missing, say so rather than editing the model mid-flight;
• write a test per criterion with its ac_… id in the test name;
• call c4_report_progress after each finished piece, with the summary, the criterion it proves and the commit sha.

Endpoints arrive with their protocol spelled out, so an agent knows whether it is implementing a request/response call or a channel:

"contract": {
  "protocol": "websocket",
  "method": "WS",
  "path": "/ws/orders",
  "response": "order.created message, one per accepted order"
}

3. Watch it move

Status is derived from evidence, never announced: a change set is a draft until work is reported against it, implementing from the first report, and done when every criterion has evidence behind it. Nobody has to remember to close it.

The catalog updates itself while you watch — the server pushes each change over the collaboration socket, with a poll behind it for sessions that have no socket. Leave it open on a second monitor and you can see commits landing against criteria without touching the page.

Only a draft can be deleted. Past that point the change set carries the record of work that actually happened — criteria cited by tests, commits reported against them — and throwing it away would erase that.

Tools an agent uses

• c4_list_change_sets — what work exists and where it stands.
• c4_get_implementation_bundle — the specification for one change set, pinned to its revision.
• c4_report_progress — one finished piece: summary, criterion, commit ref.
• c4_set_change_set_status — for the transitions evidence cannot make on its own.

Change sets belong to accounts: a project opened through a share link can be read and edited, but its versions and change sets stay out of reach.

The same endpoints the MCP server uses are public under /api/v1. Authenticate with the personal access token from Settings → MCP access, the one your editor already holds:

curl https://c4.quietgridlabs.com/api/v1/projects \
  -H "Authorization: Bearer c4pat_…"

A token carries scopes. read covers every GET; write is needed for anything that changes something, and a token without it is answered 403 insufficient_scope. Issue a read-only one for CI and dashboards — it cannot touch the model even if it leaks.

• Every failure carries a code and a sentence: { "error": "not_found", "message": "…" }.
• 600 requests per minute per token. Over it, 429 with Retry-After.
• Collections that can grow take limit and cursor, and answer with next_cursor. Ask for neither and you get the list whole.
• The unversioned /api paths are what this application calls and are free to change. Build against /api/v1.

Every endpoint, with its parameters and responses, is on the API reference.

That page reads the OpenAPI document at /api/v1/openapi.json — point a client generator at the same URL, or open it in any viewer you prefer.

A project can post its changes to your endpoint. Add one on the webhooks button in the editor rail — it is the owner's to set, since it decides where a copy of every change goes. Events:

• element.created / updated / deleted — systems, containers, components and code elements.
• connection.created / updated / deleted.
• change_set.status_changed — the one a pipeline usually waits for.

Events arrive after the model settles, not on every keystroke, and say what changed rather than carrying the whole model. When one lands, ask the API for the current state of what it names.

POST /your/endpoint
X-Viaduct-Event: element.updated
X-Viaduct-Timestamp: 1788370155
X-Viaduct-Signature: 9f2b…

{
  "event": "element.updated",
  "project_id": "…",
  "resource_id": "…",
  "occurred_at": "2026-09-02T18:00:00.000Z",
  "actor_id": "…",
  "before": { "id": "…", "name": "Billing", "level": "system" },
  "after":  { "id": "…", "name": "Billing API", "level": "system" }
}

Verify before you trust it. The signature is HMAC-SHA256 over timestamp.body with the secret shown once when the webhook is created:

const signed = `${req.headers['x-viaduct-timestamp']}.${rawBody}`;
const mine = crypto.createHmac('sha256', SECRET).update(signed).digest('hex');
const fresh = Math.abs(Date.now() / 1000 - Number(req.headers['x-viaduct-timestamp'])) < 300;
if (!fresh || mine !== req.headers['x-viaduct-signature']) return res.sendStatus(400);

Non-2xx answers are retried five times over an hour, widening the gap each time; an endpoint that keeps failing is switched off and says so in its delivery log, which the dialog shows. Endpoints must be https and public — an address on a private network is refused when you add it and again before every delivery.
